Adaptive gripper DHDG
Innovative, all-in-one bionic grip-
ping solution with minimum
weight for maximum dynamic
response. The gripper enables
secure and non-destructive grip-
ping of workpieces, even if they
are fragile or irregularly shaped.
Innovation meets standard parts
Adaptive gripper finger and
series-produced gripper com-
bined. The standardised inter-
face for gripper fingers makes
it easy to combine them, via
adapters, to common series-pro-
duced grippers.
Highlights
• SoftGrip: positive-locking and
soft gripping
• Flexible: adaptation of gripper
fingers to different shapes and
contours
• Economical: the DHDG weighs
80% less than comparable
series-produced grippers
Gripping solutions and vacuum
Parallel gripper HGPT-B
Oval piston surface and precise
T-slot guide of the gripper jaws
for the shortest gripping times
and sturdy, powerful application.
Synchronous movement through
a forced drive (single or double-
acting).
Features
• Internal or external gripping
• Optional gripping force backup
• Up to 4 position sensing
options, integrated flush
in the slot
• Tubeless compressed air
supply via adapter plate
Long-stroke gripper HGPL
Double-acting long-stroke grip-
per with precise T-slot guide of
the gripper jaws for long grip-
ping strokes and high gripping
forces.
Features
• Adjustable opening stroke
• Internal and external gripping
• Both synchronised gripper
fingers move in parallel and
in opposite directions.
Technical data
• 8 sizes with a total stroke
of up to 50 mm
• Opening/closing times
from 8 ms
• 10 million switching cycles
Technical data
• 4 sizes with a total stroke
of up to 300 mm
• Opening/closing times
from 120 ms
• 10 million switching cycles
Everything from a single source
when it comes to gripping and
positioning parts.
A wide range of grippers in
terms of function, design and
performance - compact, precise,
flexible, powerful and sturdy.

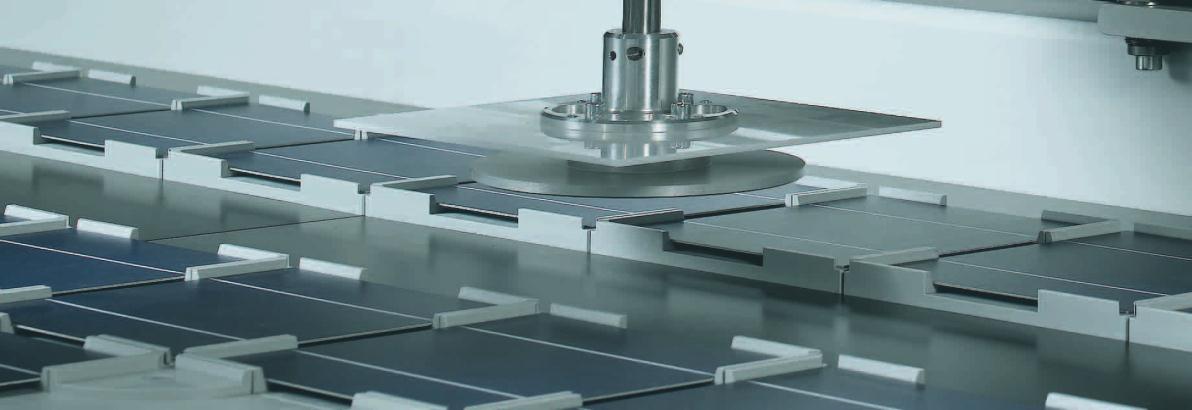

Vacuum gripping for any applica-
tion - economic, compact and
wear-resistant.
Maximum flexibility with the
adaptive gripper - minimum
weight for maximum dynamic
response.
