EGC/EGC-HD Toothed belt axes and spindle axes – Subject to change – 2012/07
5
Variants
Extended slide
• Longer guide
• For a greater axial torque
• More mounting options
The EGC in a multi-axis modular system
Linear gantry
Standard axis EGC for
Y-movement with long-stroke
Z-axis DGEA
Linear gantry
Heavy-duty axis EGC-HD for
Y-movement with high-
precision slide EGSL for
Z-movement
Cantilever axes
Standard or heavy-duty
axis EGC(-HD) with long-stroke
Y-cantilever axis and short-
stroke guided drive DFM
Three-dimensional gantry
Two standard axes EGC in
combination with the heavy-
duty axis EGC-HD and high-
precision slide EGSL
Second slide
• 1 active and 1 freely movable
(passive) slide
• For greater axial and lateral
torques
• More mounting options
Protected slide
• Scraper on both sides of the
slide unit
• Removes dirt particles and
liquids from the external
guide

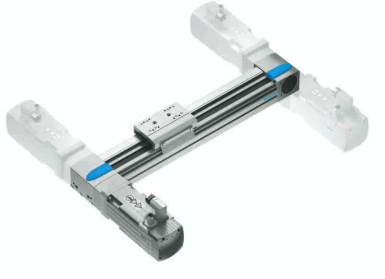

Flexible motor connection with
EGC-TB/EGC-HD-TB
• Motor mounting on 4 sides,
freely selectable
• Subsequent conversion
possible at any time
The benefits to you:
Define a standard attachment
variant with one part number
and modify to alternative
positions as and when needed
