Toothed belt axes and spindle axes EGC/EGC-HD
Servo motor controller
CMMx-AS
Three variants
•
CMMP-AS:
highly functional
solution for dynamic motion
•
CMMS-AS:
for standard
applications and simple
positioning tasks
Stepper motor controller
CMMx-ST
Single-axis position controller
CMMS-ST with optional
ServoLite operating mode for a
fully-fledged closed-loop servo
system. Alternatively, it can be
used as a low-cost open-loop
system for stepper motors
without encoder.
• Single-turn rotary encoder
(standard), multi-turn rotary
encoder (optional)
• Protection class IP65 for
motor housing and
power/sensor connection
• 6 torque ranges
• Encoder for ServoLite function
(optional)
• Protection class IP65 for
motor housing and plug
connection
•
CMMD-AS:
in standard
applications, it can operate
two servo motors
independently of each other
using two controllers in one
housing.
One philosophy
• Software tools by Festo:
a universal concept for
commissioning,
programming,
parameterisation
CMMO-ST is a closed-loop
servo controller for stepper
motors – with “WebConfig”
and “WebDiag”, the integrated
HTML web server for
configuration and diagnostics.
Simple and fast selection
including 1 order code, low
heat build-up, monitored safe
positions and quiet motor
running.

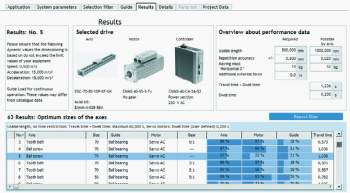

PositioningDrives calculates
the ideal combination from the
widely coordinated range of
electric linear axes, motors,
gear units, controllers and
software after a few application
data have been entered.
The tool can also calculate
the characteristic load values
for the selected drive quickly
and reliably through the
specification of various project
parameters. Thanks to the right
choice of components,
PositioningDrives prevents
incorrect designs and energy
waste.
Motors and controllers
60
10
0
1000
2000
3000
4000
5000
1 rpm
Nm
CMMP-AS
CMMS/O-ST
CMMS/D-AS
Performance comparison between servo motors and servo controllers
Motors
Design faster with PositioningDrives
EMMS-AS + CMMP-AS
EMMS-AS + CMMS-AS/CMMD-AS
EMMS-ST + CMMS-ST/CMMO-ST
Servo motor EMMS-AS-70
Stepper motor EMMS-ST-28
CMMS-ST
CMMO-ST
CMMP-AS
CMMD-AS
