39
Double-channel
Always check that each channel
in multi-channel solutions fulfils
the safety function.
Diagnostics
Diagnostics for both channels
must be carried out via software.
Special features
The non-return valves also need
a differential pressure in order to
exhaust. In the event of a fault,
a residual pressure of approx.
0.5 bar cannot exhaust.
Safety function
With this set-up, both cylinder
chambers are exhausted via
2 channels.

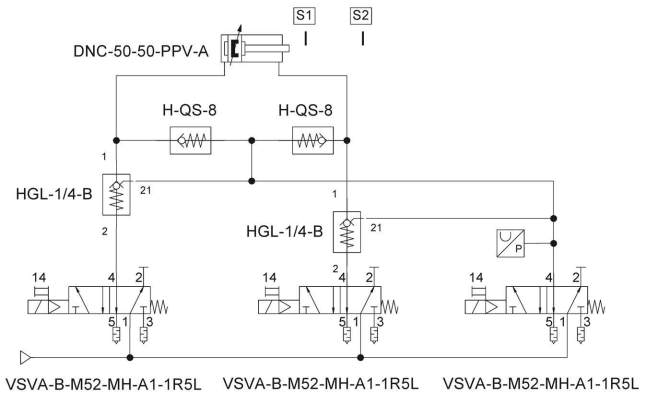

Exhausting via non-return valves
Part no.
Type
534556
VSVA-B-M52-MH-A1-1R5L
5/2-way valve
153464 H-QS-8
530031 HGL-1/4-B
Non-return valve
163371 DNC-50-50-PPV-A
Cylinder
Pressure switches
Application-specific
proximity sensors
Safety function
Exhausting
Protection against unexpected start-up
Input
Logic
Output
Pneumatic
Electrical
See the technical data of the individual products for detailed information.
Please observe the legal information on page 73.
Cat.
3
PL
d
DC
Medium
CCF
>65%
Channels
2
Safety component
No
to MD 2006/42/EC
All specified values are
maximum values, which
can be achieved via
correct operation
of the component.
