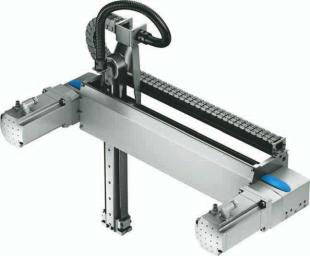

T-gantry EXCT
Low moving mass and inertia
of the Z-axis:
for precision
positioning with high accelera-
tion and deceleration, as well
as minimal vibration
Flexible working space:
through scaleable strokes in
Y and Z-direction
Compact design:
with large
working space coverage in
the vertical plane - particularly
interesting where installation
space is limited
Universal:
Front-unit interface
for mechanical or vacuum-
assisted rotating and gripping
solutions
Minimum space requirement:
simple and safe assembly,
minimal installation effort
required thanks to an integrated
energy chain concept on the
Y and Z-axis
High dynamic response:
thanks
to the superposition of the two
stationary servo motors on the
Y-axis and the rotating toothed
belt

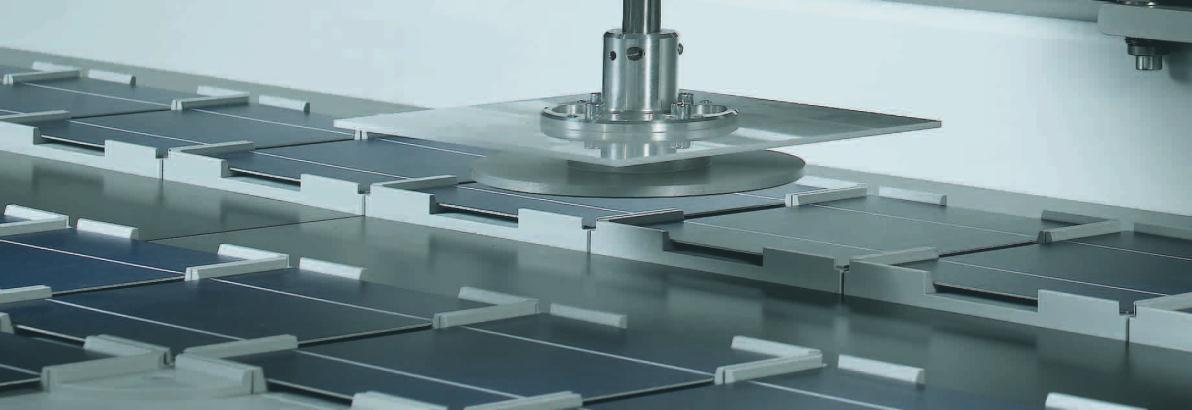

The Cartesian high-speed pick and place handling system stands for
maximum dynamic response with over 90 picks/min, high flexibility
and a compact design. As a complete solution, it is the most dynamic
alternative to conventional solutions with free movement.
The corresponding control package ensures precise point-to-point
or path-controlled movements in the vertical plane.
Overall, it is an excellent system thanks not only to low purchase
costs but also low operating costs, as the low moving mass reduces
energy consumption. Reliable series components and reduced
vibrations contribute to a long service life.
