Designs, variants and technical features

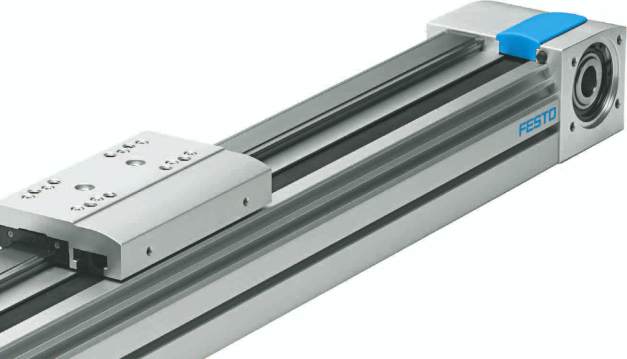

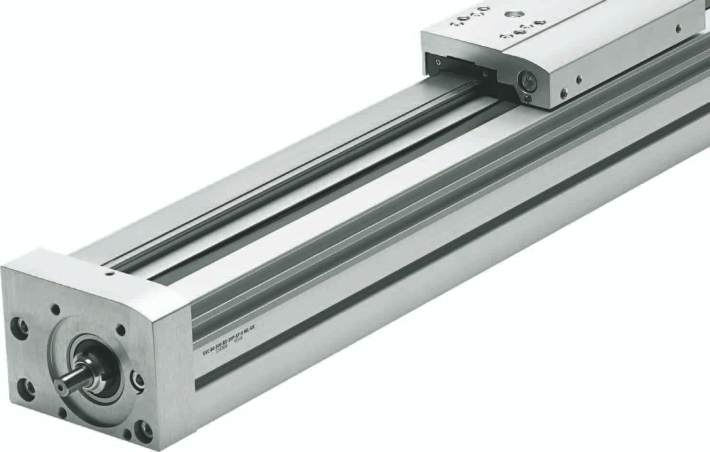

The EGC range at a glance
Limit stop to prevent damage
in case of malfunction
• Emergency buffer with
retainer or
• Shock absorber with retainer
Spindle support
• For maximum speed in case of
long strokes
Spindle drive
• Standard EGC-BS
• Heavy-duty EGC-HD-BS
Motor positions
• Freely selectable at both ends
of the axis
• Rotated 90° x 4, conversion
possible
External guide
• High torque resistance due to
short distance between load
and guide
Scraper on both sides
• For protecting the guide
against dust, dirt particles
and fluids
Aluminium profile
• Optimised cross section
• Optimised flow of force
Extended slide
• Longer guide
Greater axial torque
Second slide
Additional freely movable
slide
• Greater torques
Central lubrication
• Constant greasing of guide
via 2 lubrication adapters
• Suitable for oils and grease
