EGC/EGC-HD Toothed belt axes and spindle axes – Subject to change – 2012/07
3
Guide axis EGC-FA
• Passive, without drive
Inductive proximity sensor
SIES-8M
• Up to 2 sensors in the sensor
slot
• Without protruding edges
Incremental displacement
encoder
• For safety-relevant 2-channel
solutions
And tomorrow?
Clamping unit for holding
loads safely
• 1 or 2-channel
• Acts directly on the guide

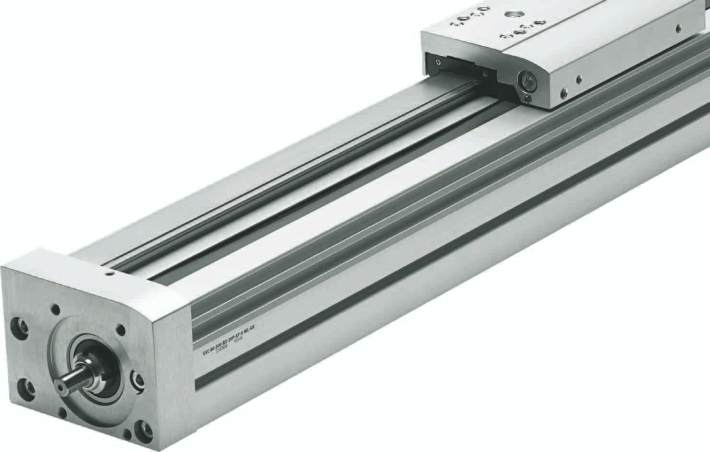

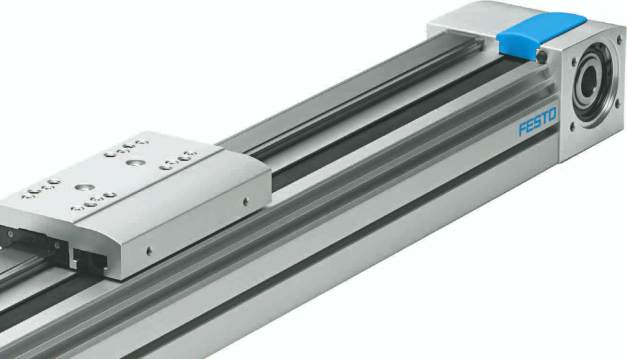

Toothed belt drive
• Standard EGC-TB
• Heavy-duty EGC-HD-TB
Motor positions
• Freely selectable
• Convertible
Aluminium profile
• Optimised cross section
• Optimised flow of forces
