Notes

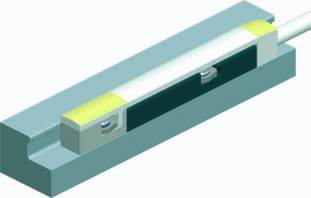

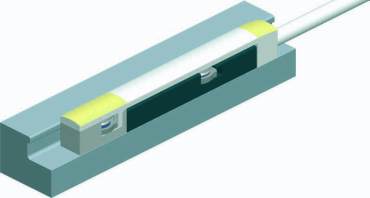

The sensors permit reliable
position sensing. It is then
possible to switch between
different safety functions.
Switches are mechanically
connected, are protected against
manipulation and securely
mounted.
Sample application:
In two-hand operation, the
cylinder advances to an
uncritical position where
the position of the hands no
longer needs to be blocked.
The two-hand switches can now
be released.
Reversing the safety function
Part no.
Type
575815
SAMH-S-N8-S-MK Mounting kit (complete)
575816
SAMH-S-N8-L-MK Mounting kit (complete)
575817
SAMH-S-N8-S-SC Cover (spare part)
575818
SAMH-S-N8-L-SC Cover (spare part)
Safety function
Two-hand control – Reversing or stopping,
holding, blocking a movement
Input
Logic
Output
Logic
Output
Pneumatic
Electrical
See the technical data of the individual products for detailed information.
Please observe the legal information on page 73.
Sensor function
Cat.
3
PL
d
DC
Medium
CCF
>65%
Channels
2
Safety component
No
to MD 2006/42/EC
All specified values are
maximum values, which
can be achieved via
correct operation of the
component.
