Notes
The position of the guard door,
which is pneumatically activated,
can be reported reliably
(SAMH-S) and directly via the
drive. Additional sensing per
EN 1088 is not necessary.
The guard door is opened by
a cylinder.
If the door is open, the cylinder
is not in the normal position.
This is detected by the safe
position encoders; the system
remains at rest.
Switches are mechanically
connected, are protected against
manipulation and securely
mounted.

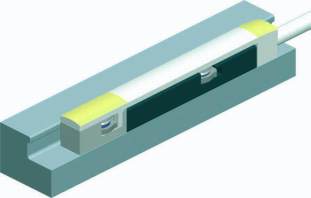

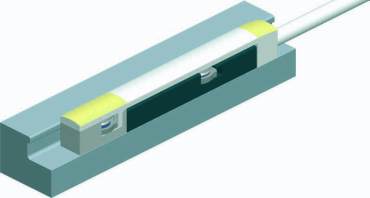

Cylinder as a door drive
Part no.
Type
575815
SAMH-S-N8-S-MK Mounting kit (complete)
575816
SAMH-S-N8-L-MK Mounting kit (complete)
575817
SAMH-S-N8-S-SC Cover (spare part)
575818
SAMH-S-N8-L-SC Cover (spare part)
Safety function
Movable guard, holding, stopping,
blocking a movement
Input
Logic
Output
Pneumatic
Electrical
Logic
Output
See the technical data of the individual products for detailed information.
Please observe the legal information on page 73.
Sensor function
Cat.
3
PL
d
DC
Medium
CCF
>65%
Channels
2
Safety component
No
to MD 2006/42/EC
All specified values are
maximum values, which
can be achieved via
correct operation
of the component.
