Technical data
Voltage
24 V DV
Operating pressure
3.5 ... 10 bar
Temperature range
-10 ... +50°C
Flow rate (exhausting)
Up to 9000 l/min

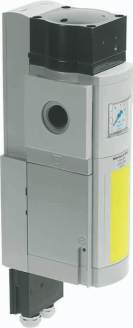

MS–6-SV-E
Special features
Electrical interface Sub-D 9-pin
Possible special plug NECA-
MP3-SA
The NECA-MP3-SA permits
actuation of the MS6-SV with
signals, whereby the enable
signals EN1 and EN2 are
galvanically isolated from the
supply of the MS6-SV. Galvanic
isolation is guaranteed via 2
optocouplers.
P
L
M
Q
Part no.
Type
548713
MS6-SV
562580
MS6-SV-1/2-E-10V24-AD1
548715
MS6-SV-1/2-E-10V24-AG
548717
MS6-SV-1/2-E-10V24-SO-AG
552252
UOS-1
573695
Multi-pin plug NECA-S1G9-P9-MP3-SA
548719
Multi-pin plug NECA-S1G9-P9-MP1
552703
Multi-pin plug NECA-S1G9-P9-MP3
Safety function
Exhausting
Protection against unexpected start-up
Safe pressure build-up
Input
Logic
Output
Pneumatic
Electrical
See the technical data of the individual products for detailed information.
Please observe the legal information on page 73.
Cat.
4
PL
e
DC
integrated
Internal sensing
of the piston-
position
Channels
2
Certificate
IFA
Safety component
Yes
to MD 2006/42/EC
All specified values are
maximum values, which
can be achieved via
correct operation
of the component.
