Features
• Protection against unexpected
start-up (2-channel)
• Safety measure: pressure
release (1-channel)
• Safety measure: stop
(1-channel)
• Stop category: “0”
(EN 60204-1)
• Pressure supply not
deactivated
Notes
• This set-up is only
recommended for horizontal
axes.
• The axis can still move after
an emergency stop. The
overtravel depends on the
current speed and the moving
mass.
• On reactivation, the drive
can move, depending on the
activation conditions.
• Use of a braking/clamping
unit, together with the
servopneumatic controller,
can prevent a movement
on restart.

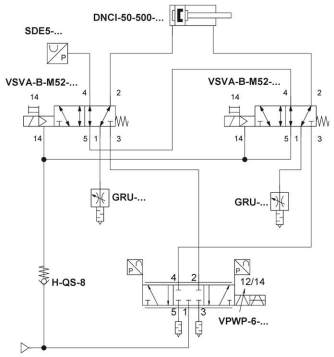

Safety function for servopneumatics
Switching off power
Part no.
550 171
534 546
161 109
535 413
542 897
9 517
153 464
Designation
VPWP-6-L-5-…
VSVA-B-M52-MZH-A1-1R5L
NAS-1/4-01-VDMA
DNCI-50-500-P-A
SDE5-D10-FP-Q6E-P-M8
GRU-1/4-B
H-QS-8
Description
Proportional valve, component of the servopneumatic system
as a first channel
5/2 single solenoid switching valve, with spring return and
external auxiliary pilot air as a 2nd channel. The size (flow
rate) is based on the proportional valve.
Standard cylinder with displacement encoder
Pressure switch for diagnostics of the emergency stop valves
(VSVA)
Flow control/silencer for defined exhausting of the cylinder
Non-return valve
Safety function
Switching off power, exhausting
Input
Logic
Output
Pneumatic
Electrical
See the technical data of the individual products for detailed information.
Please observe the legal information on page 73.
Cat.
3
PL
d
DC
Medium
CCF
>65%
Channels
2
Safety component
No
to MD 2006/42/EC
All specified values are
maximum values, which
can be achieved via
correct operation
of the component.
