53

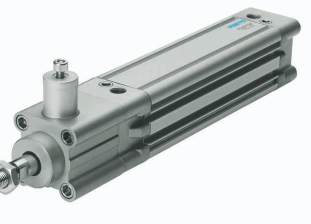

Part no.
DNC-KP
Emergency stop stroke
163302
Ø 32
10 ... 2000
163334
Ø 40
10 ... 2000
163366
Ø 50
10 ... 2000
163398
Ø 63
10 ... 2000
163430
Ø 80
10 ... 2000
163462
Ø 100
10 ... 2000
163494
Ø 125
10 ... 2000
Part no.
ADN-...-...-KP
Stroke
DNC-KP
548206
Ø 20
10-300
KP-10-350
548207
Ø 25
10-300
KP-10-350
548208
Ø 32
10-400
KP-12-1000
548209
Ø 40
10-400
KP-16-1400
548210
Ø 50
10-400
KP-20-1400
548211
Ø 63
10-400
KP-20-2000
548212
Ø 80
10-500
KP-25-5000
548213
Ø 100
10-500
KP-25-5000
Notes
The clamping cartridge is not a
complete safety solution. It can
be used as part of a solution.
The piston rod can be held or
clamped in any position.
The piston rod can also be held
for extended periods, alternating
loads, fluctuations or leakage.
Clamping units
Safety function
Stopping, holding, blocking
a movement (mechanically)
Part no.
Type
178455
KP-10-350
178456
KP-12-600
178457
KP-16-1000
178458
KP-20-1400
178459
KP-20-2000
Part no.
Type
178460
KP-25-5000
178461
KP-32-7500
178452
KP-4-80
178453
KP-6-180
178454
KP-8-350
Part no.
Type
178465
KPE-10
178466
KPE-12
178467
KPE-16
178468
KPE-20
178469
KPE-25
Part no.
Type
178470
KPE-32
178462
KPE-4
178463
KPE-6
178464
KPE-8
See the technical data of the individual products for detailed information.
Please observe the legal information on page 73.
Cat.
PL
DC
CCF
Channels
1
Safety component
No
to MD 2006/42/EC
All specified values are
maximum values,
which can be achieved
via correct operation
of the component.
Can be used in
higher category
systems.
