Notes
The clamping unit and the
end-position locking are not
complete safety solutions.
They can be used as part of a
solution.
Clamping unit
• For fixing the slide in any
position
• Frictional locking
• Clamping via spring force,
release via compressed air
end-position locking
• Mechanical locking when the
end position is reached
• Positive-locking
• Locking via spring force,
release compressed air

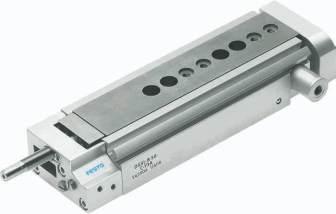

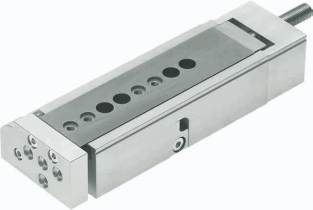

Mini-slide DGSL with clamping unit or end-position locking
Part no.
Type
543903
DGSL-6
543904
DGSL-8
543905
DGSL-10
543906
DGSL-12
543907
DGSL-16
543908
DGSL-20
543909
DGSL-25
Safety function
Holding, blocking a movement
(mechanical)
See the technical data of the individual products for detailed information.
Please observe the legal information on page 73.
Clamping unit
E3 end-position locking
Cat.
PL
DC
CCF
Channels
1
Safety component
No
to MD 2006/42/EC
All specified values
are maximum values,
which can be achieved
via correct operation
of the component.
Can be used in
higher category
systems.
